UDF

Top  Previous  Next



This module allows you to maintain and use User Defined Fields.

Go to Tools > Program Control > Module Setting

Check the checkbox of UDF to enable it.

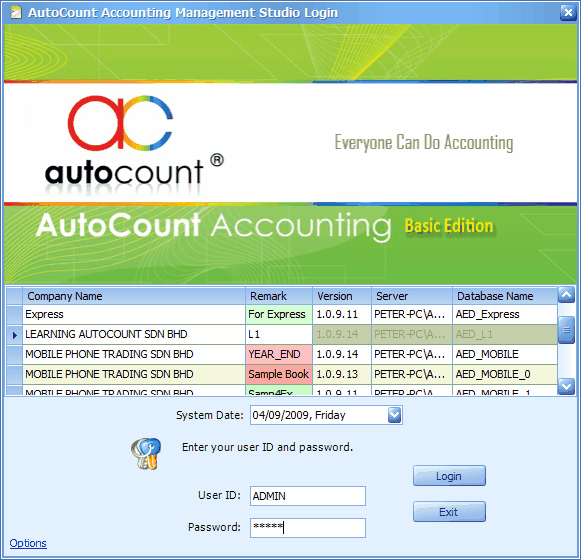

Login to Management Studio



To use this feature, you have to access to AutoCount Accounting Management Studio.

Go to Start > All Programs > AutoCount Accounting > AutoCount Accounting Management Studio

Select the account book you wish to add UDF, and login as ADMIN (only ADMIN user is allowed to access to this program)





module62











Add/Maintain UDF



Go to Tools > User Defined Field

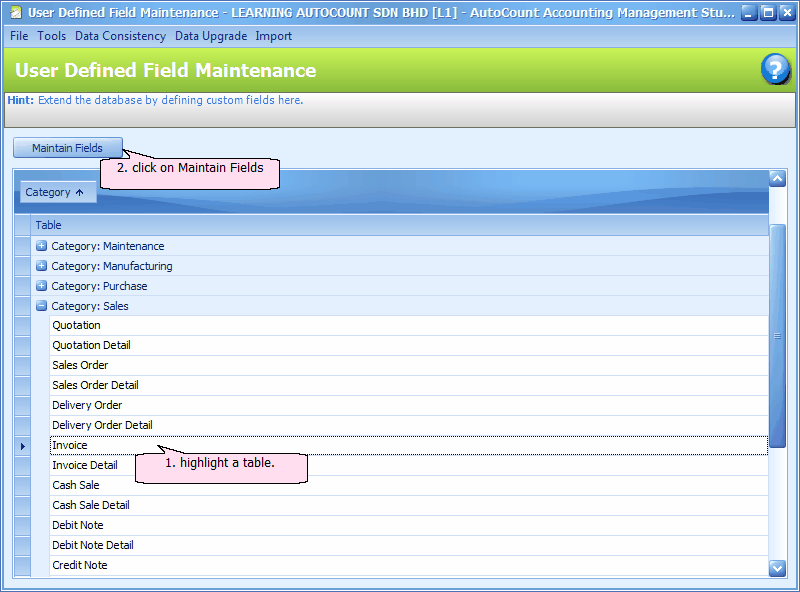

Highlight to select a table,

For example I have selected Invoice (which means Invoice Master, as opposed to Invoice Detail)





module63





Click on Maintain Fields,

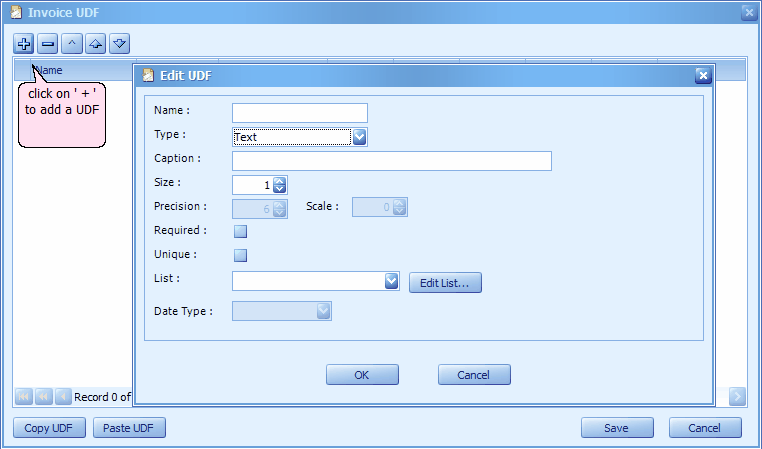

Click on '+' sign to add a UDF,





module64



Name: assign a name to this UDF, e.g. HOBBY, DOB, EDUCATION....

Caption: name of the field to be displayed on the interface.

Type: There are several UDF types available: Text, Decimal, Integer, Date, Boolean, Memo, ImageLink, RichText, System.

Required: check this checkbox to make input compulsory

Unique: check this checkbox to prevent repetitive input value

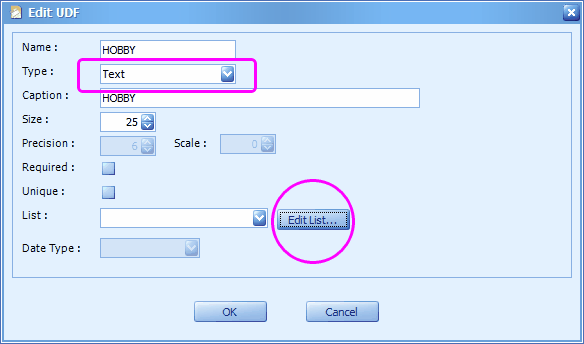

Type = Text



module65



Text: you may either allow a free text box or maintain a combo box; text is alpha-numeric

Size: maximum length of text box is 4000

List: to adopt a combo box which was maintained by using Edit List.

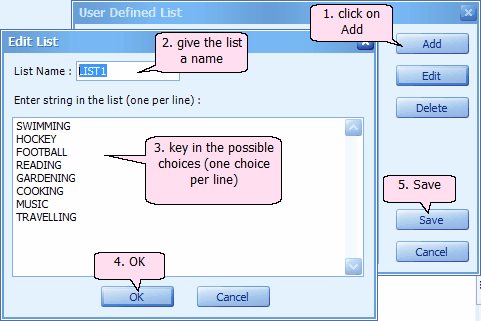

Edit List: click on this button, click on Add, key in List Name and strings for combo box selection.




module66



(Note: the list can be modified at AutoCount Accounting > General Maintenance > User Defined List Maintenance.)



Then click on OK, Save.

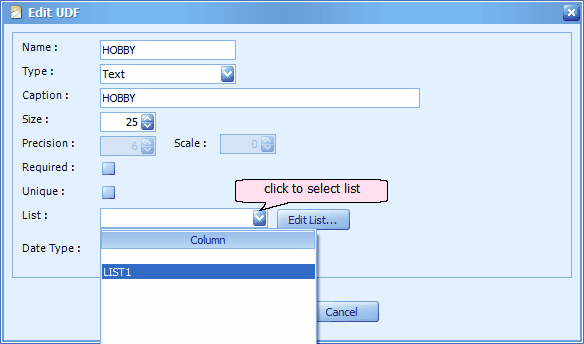

Click on drop down button to select from the list. Then OK.



module67

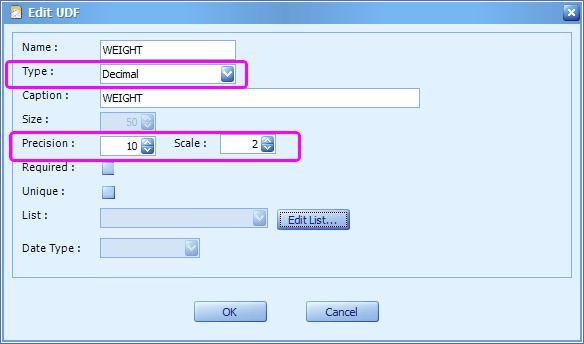

Type = Decimal





module68



Decimal means a number with decimal points.

Precision: number of digits

Scale: number of decimal points.

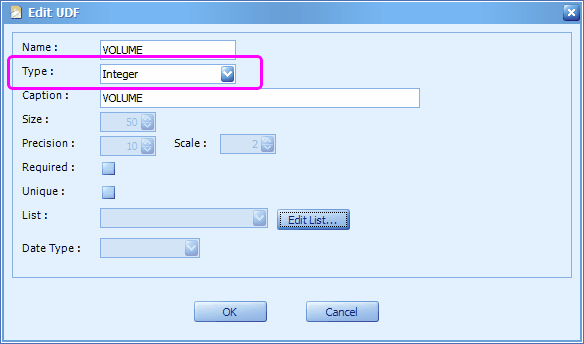

Type = Integer





module69



Integer: means a number without decimal points.

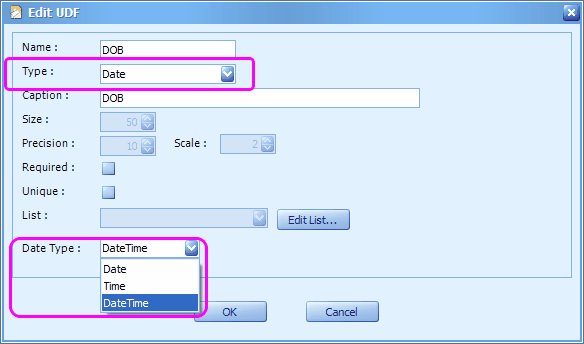

Type = Date





module70



Date: means a field to enter date, time, or both.

Date Type: can be either Date, Time or DateTime

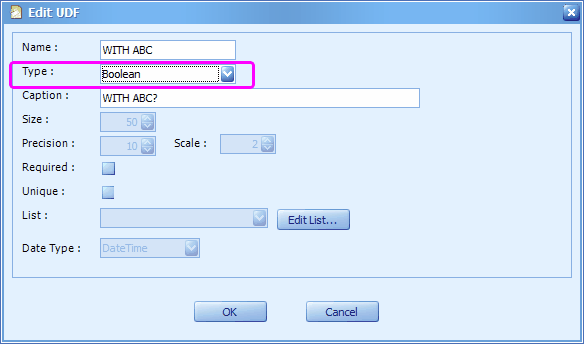

Type = Boolean





module71



Boolean: means either true or false

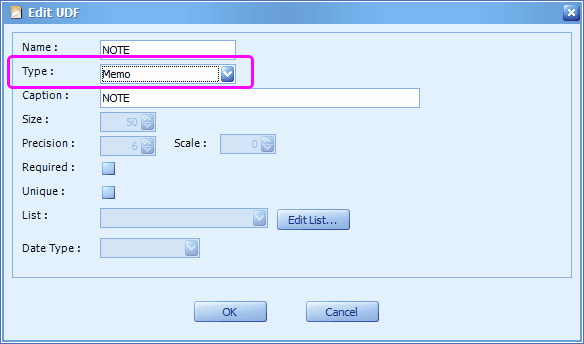

Type = Memo





module72



Memo: means multi-line free text (plain text)









Type = ImageLink





module73



ImageLink: means to store the linking path to a image file.

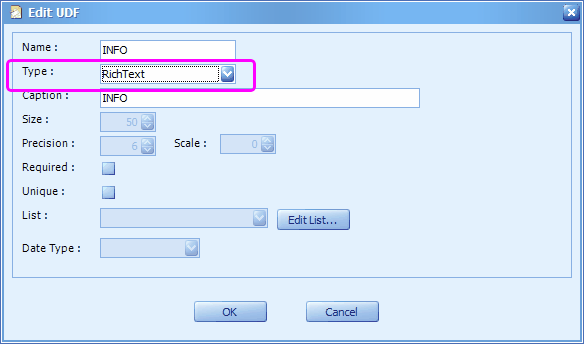

Type = RichText





module74



RichText: means multi-line free text (rich text)

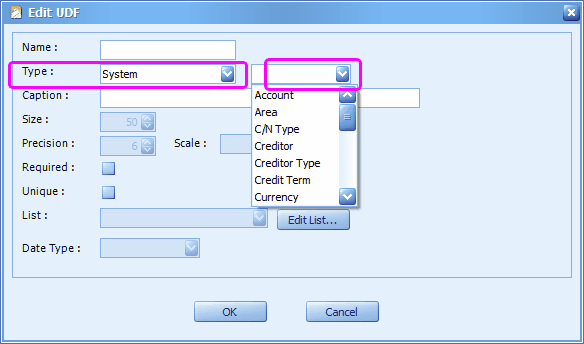

Type = System





module75



System: means the data will be linked to existing system master file data, such as:

Item Code

Item Group

Item Type

Debtor Code

Creditor Code

Account No, and etc

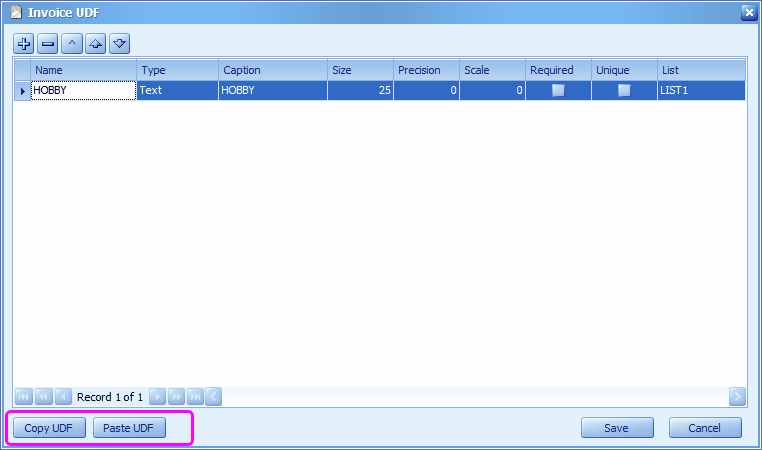

Copy/Paste UDF





module76



Click on Copy UDF to copy highlighted UDF from this category/table, then you may go to another category/table and click on Paste UDF to paste the UDF.

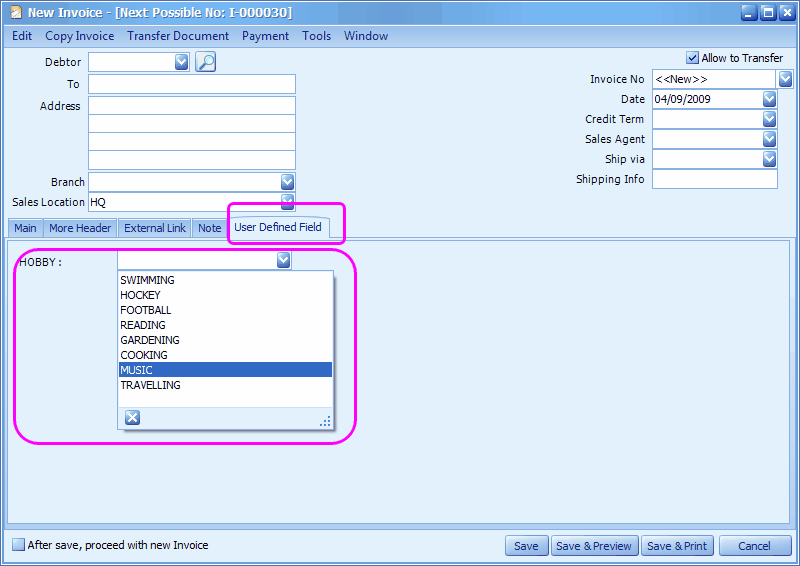

The Effect



Go to AutoCount Accounting, login to the same account book,

Try to add a new Invoice, click on User Define Field tab, the UDF is ready to use.





module77

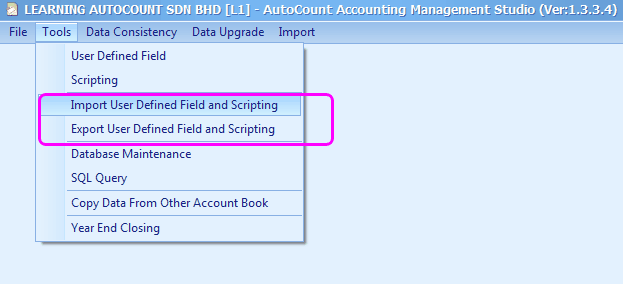

Note: UDF can be exported from one account book and imported to another account book. (Tools > Import/Export User Defined Field and Scripting)





module78
