MAWB Maintenance

Top  Previous  Next

What is MAWB?

Air Waybill (AWB) is an air consignment note issued by an international courier company, as an evidence of the contract of carriage.

In air freight, the exporter (the consignor) often engages a freight forwarder or consolidator to handle the forwarding of goods. The consignor authorizes the forwarding agent to sign certain documents (e.g. the AWB) on behalf of the consignor.

International AWBs that contain consolidated cargo are called master air waybills (MAWB). MAWBs have additional papers called house air waybills (HAWB). Each HAWB contains information of each individual shipment (consignee, contents, etc.) within the consolidation.

A house air waybill can also be created by a freight forwarder. When the shipment is booked, the airline issues a MAWB to the forwarder, who in turn issues their own house air waybill to the customer.

International AWBs that are not consolidated (only one shipment in one bill) are called simple AWBs.

The AWB has a tracking number consists of 11 digits and 3 parts.

The first 3 digits are the Airline Prefix issued by IATA (International Air Transport Association)
The next 7 digits is the Serial Number of the AWB
The last digit is the Check Digit (the check digit is derived by dividing the 7 digit Serial Number by 7. The remainder determines the Check Digit. Example: Serial Number 8114074 divided by 7 is 1159153 remainder 3. Therefore the Serial Number + Check Digit is 81140743).



Add New MAWB

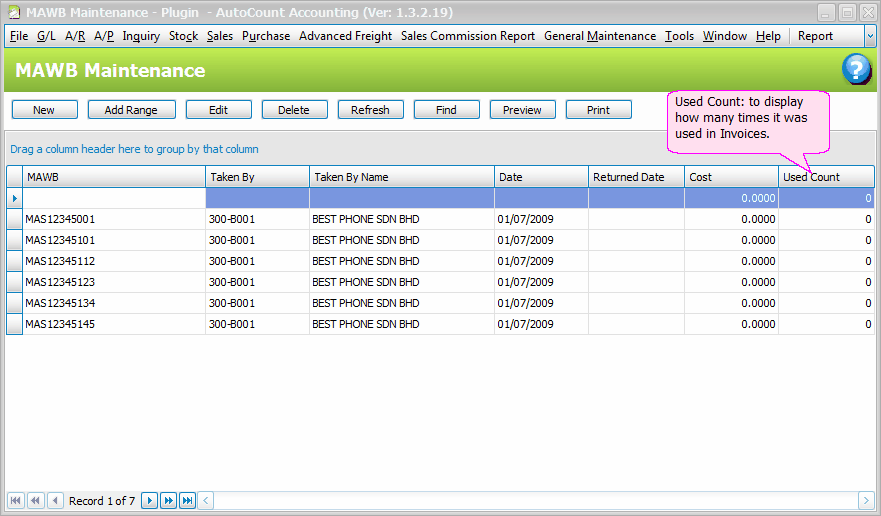

Go to Advanced Freight > MAWB Maintenance,

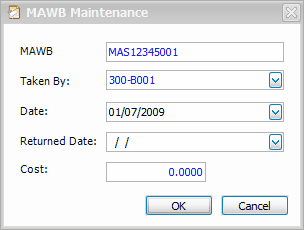

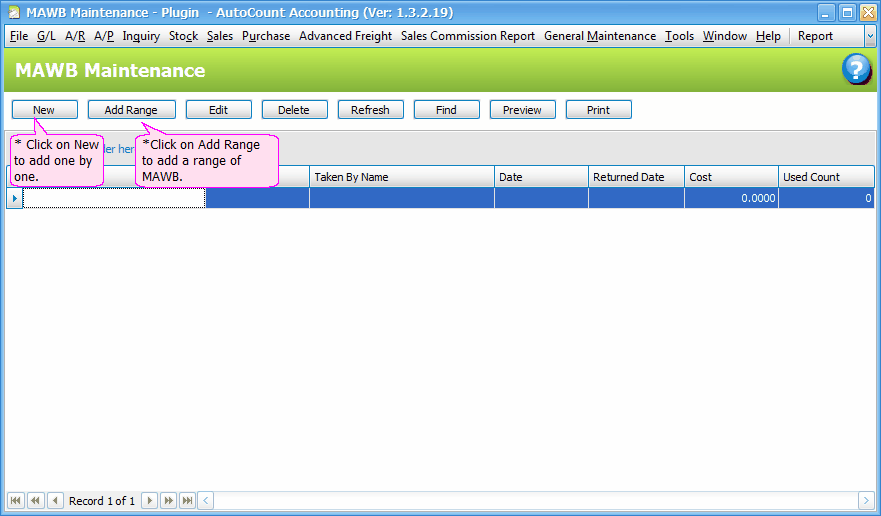

Click on New to add the MAWB one by one:






OR, Click on Add Range to add a range of MAWB,




No of copy: key in number of copy, each copy will have 11 running numbers

First No: the first running number of the first copy (auto-generated)

Last No: the first running number of the last copy (auto-generated)

Taken By: select the customer that has taken these MAWB.

Date: the date of the issuance.
