Serial No

Top  Previous  Next



This module allows items with serial numbers, including transaction and reports.

Go to Tools > Program Control > Module Setting

Check the checkbox of Serial No. to enable it.





Maintain Item With Serial Number



Go to Stock > Stock Item Maintenance

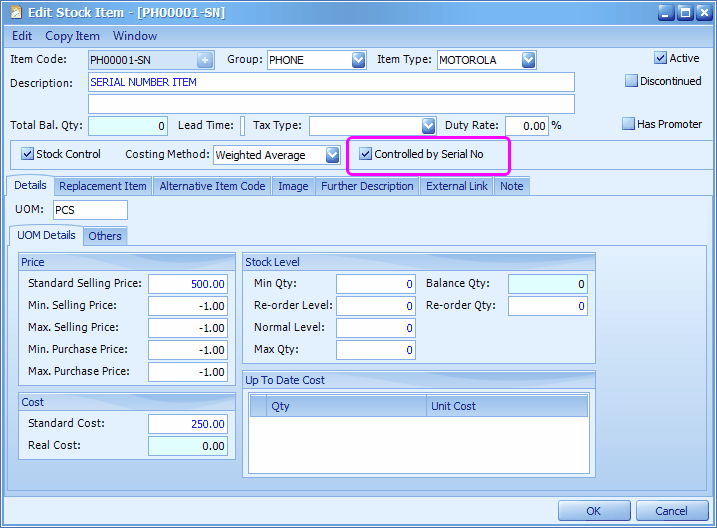

Add/Edit an item, check the checkbox of Controlled by serial No





module87











Maintain Opening Balance for Items with Serial No.

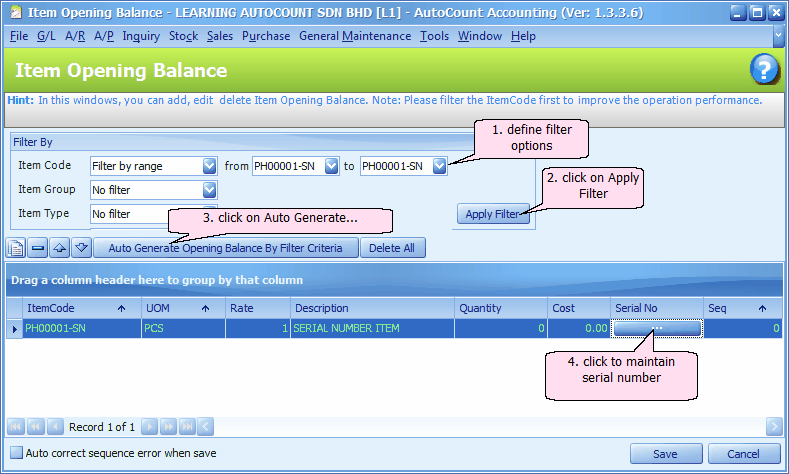

Go to Stock > More Stock Maintenance > Item Opening Balance Maintenance

Define filter options, then click on Apply Filter,

Click on Auto Generate Opening Balance By Filter Criteria,





module87a



You may key in quantity under Quantity column, and then click on module00 button under Serial No column to maintain serial numbers;

OR, you may directly click on module00 button under Serial No column to maintain serial numbers, and then let the system auto generate its opening quantity.

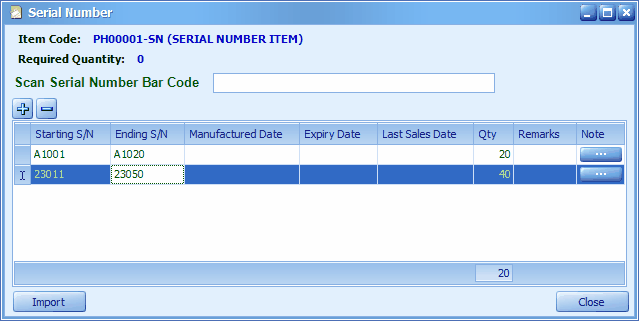

Click on module00 button,





module87b





Click on '+' sign to add a new row.

If it is a continuous running S/N, by keying in Starting and Ending S/N, quantity (Qty) will be calculated automatically,

(You may scan serial number from Bar Code (for Starting and Ending S/N).... )

(You may also click on Import to import serial numbers from a text file.)





Click on Close,

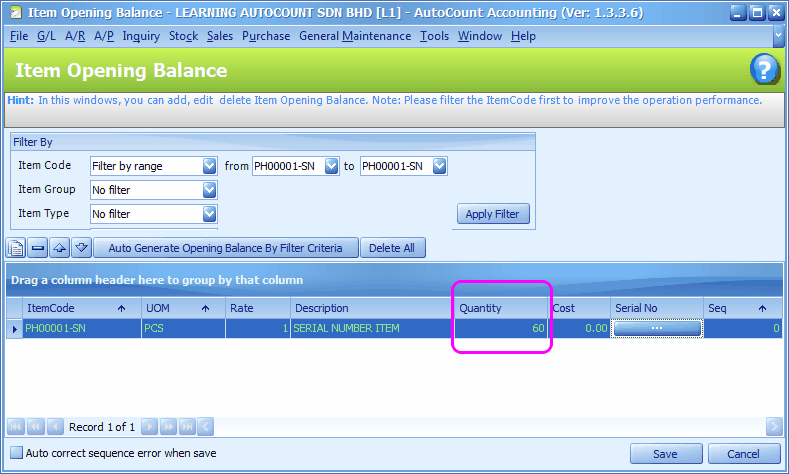

Total opening balance (Quantity column) is filled.

Click on Save.





module87c









Purchase of Item with Serial Number



Go to Purchase > Purchase Invoice  (or Goods Received Note, or Cash Purchase..)

Click on Create A New Purchase Invoice





module87d

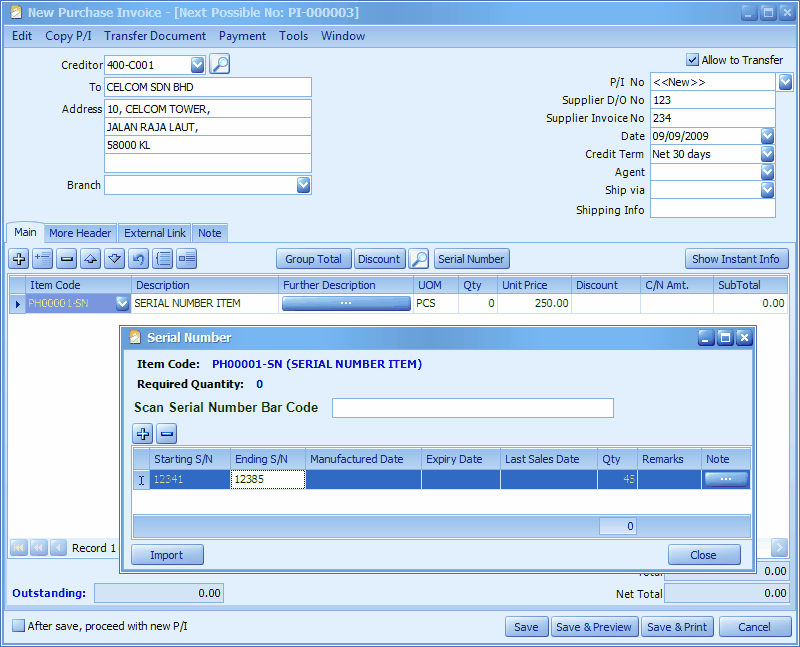

Click on '+' sign to select an item with serial number, the Serial Number window will be prompted to scan/key in the Starting and Ending S/N, then click on Close, (you may also key in the Starting S/N and Qty so that the Ending S/N will be automatically filled.)





module87e

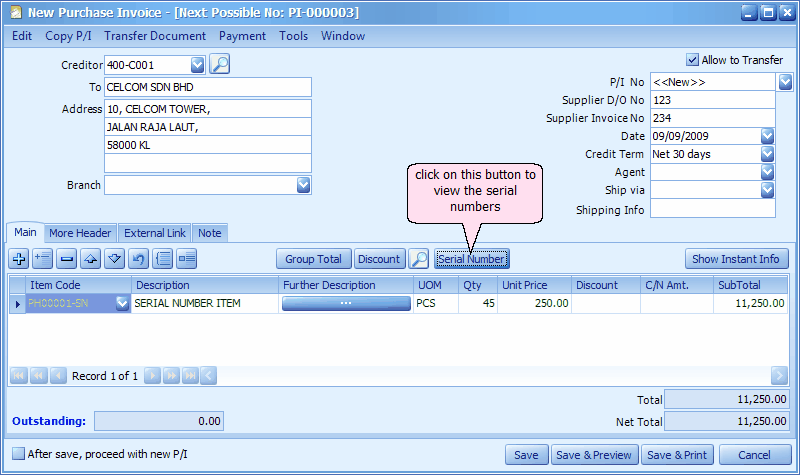

You may notice that the quantity (Qty) field is filled and you may click on Serial Number button to bring up Serial Number window again.

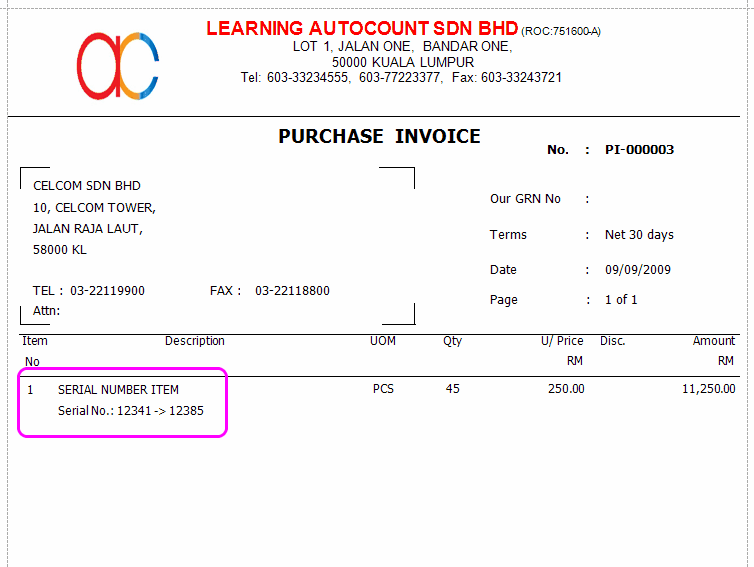

Click on Save & Preview, the printout will look like this,





module87f







Sale of Item with Serial Number



Go to Sales > Invoice (or Delivery Order, or Cash Sales ....)

Click on Create A New Invoice

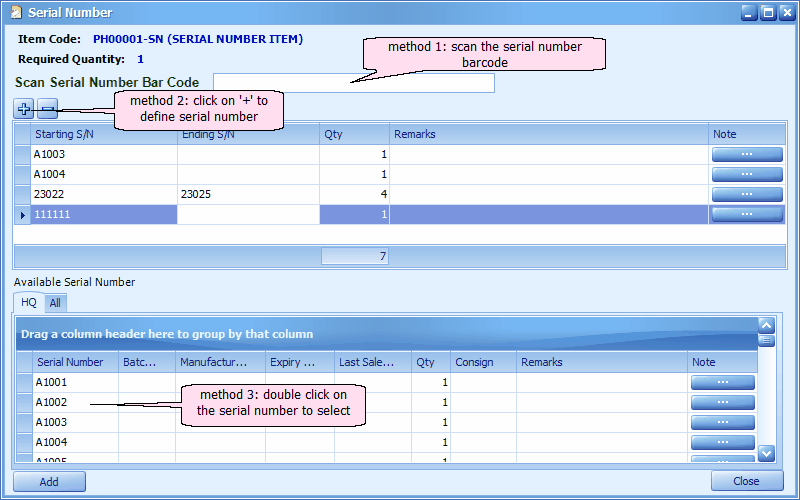

Click on '+' sign to add a transaction row, select an Item with serial number, the following windows will be displayed:





module87g





There are several ways to assign serial numbers during transaction:

a) Scanning S/N barcode (place cursor on the field of Scan Serial Number Bar Code); or

b) Double click on serial number from Available Serial Number table; or

c) Click on '+' sign and key in the Starting and Ending S/N... (if numbers are continuous).

(note: you may also scan / key in serial numbers that are currently not in the list of Available Serial Number)

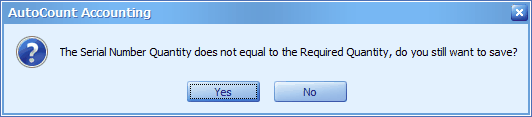

Click on Close





module87h

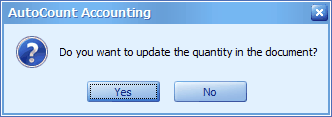

Click on Yes





module87i





Click on Yes to update the quantity in Qty column.

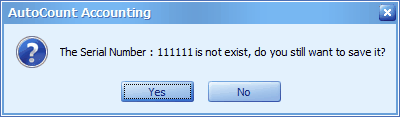

module87j

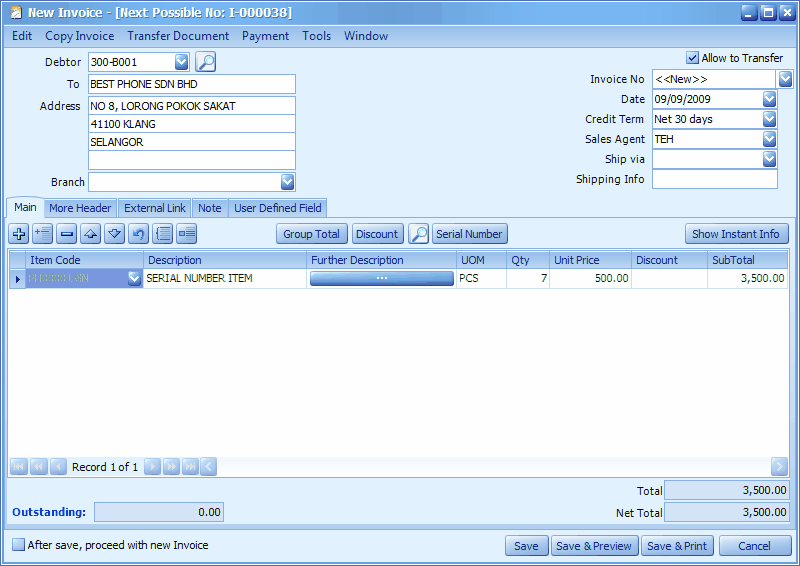

Click on Yes to acknowledge the message and proceed to the transaction screen.





module87k

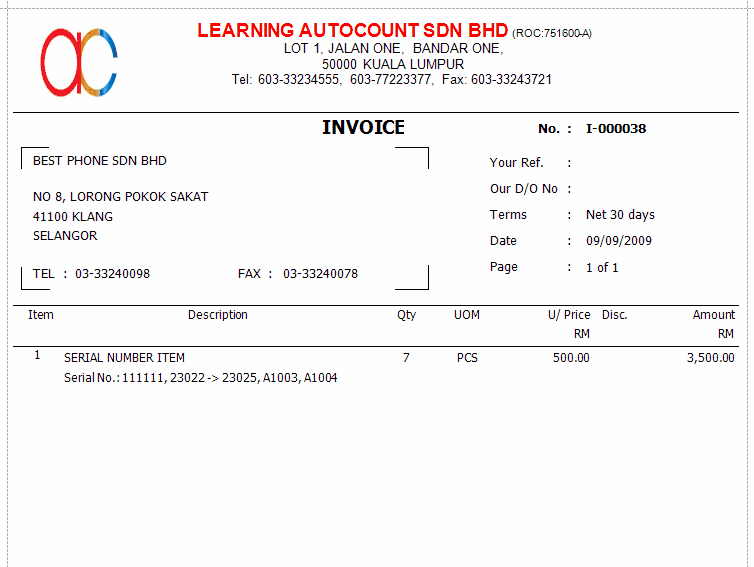

Click on Save & Preview.





module87l







Available Serial Number Inquiry



Go to Inquiry > Available Serial Number Inquiry

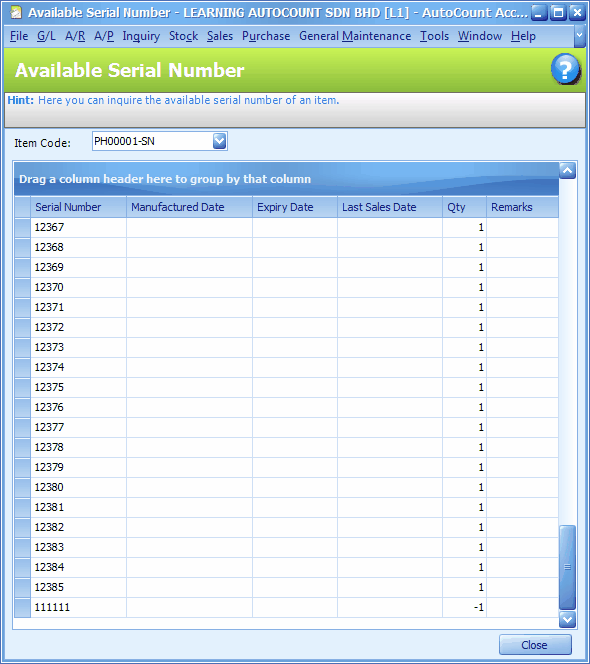

Select an item with serial number, and all serial numbers that are still available will be listed:





module87m



The serial number '111111' is indicated with a '-1' quantity, this is because I have sold this serial number while it was not in the available list.

Something must be done to get rid of this '-1' quantity so that stock report will be corrected.

What needed to be done is to add back one unit of this item with this serial number '111111', by using one of the following documents:

a) Stock > Stock Receive or Stock Adjustment (if there was an omission or miscount of stock)

b) Stock > Stock Transfer (if the serial number was physically transferred from other location but not yet recorded)

b) Sales > Credit Note (if there was a return of this Serial Number but not recorded)

c) Purchase > Goods Received Note or Purchase Invoice or Cash Purchase (if there was a goods received but not recorded)

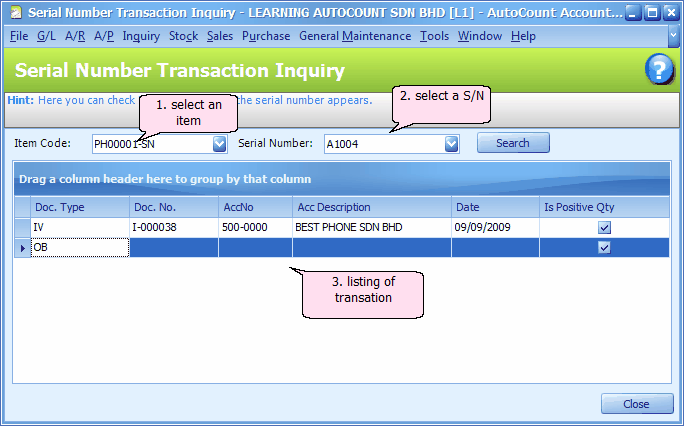

Serial Number Transaction Inquiry



Go to Inquiry > Serial Number Transaction Inquiry

Select an item code. select a serial number, and all the transaction records of such serial number will be listed:





module87n

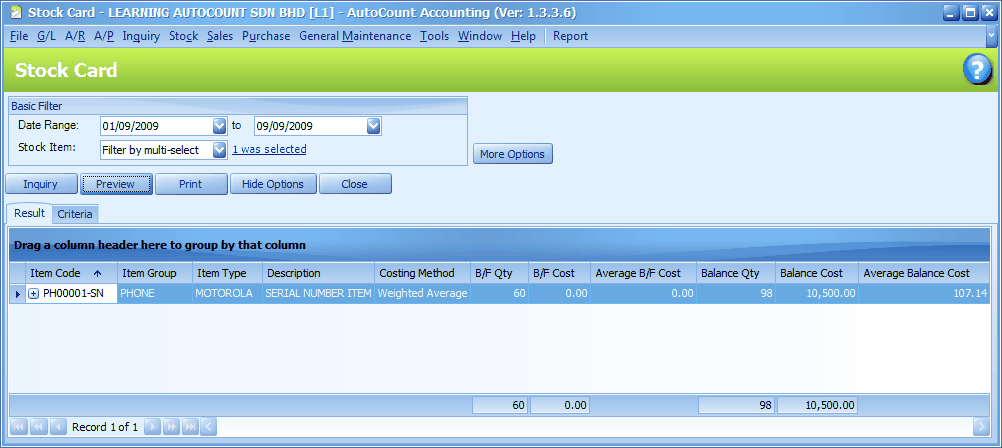

Serial Number Stock Card Report



Go to Stock > Stock Card Report

Define filter option, click on Inquiry.





module87o





Click on Preview





module87p

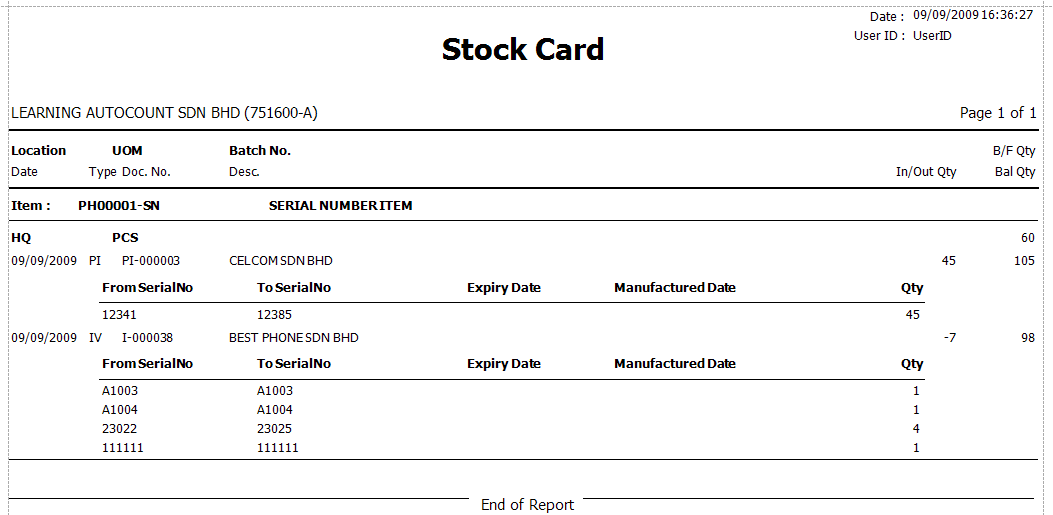

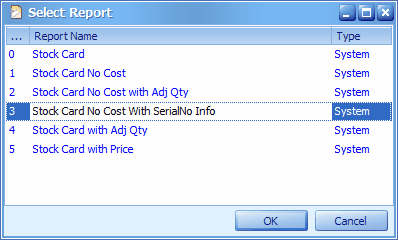

To view the details of serial numbers, select Stock Card No Cost With SerialNo Info,





module87q

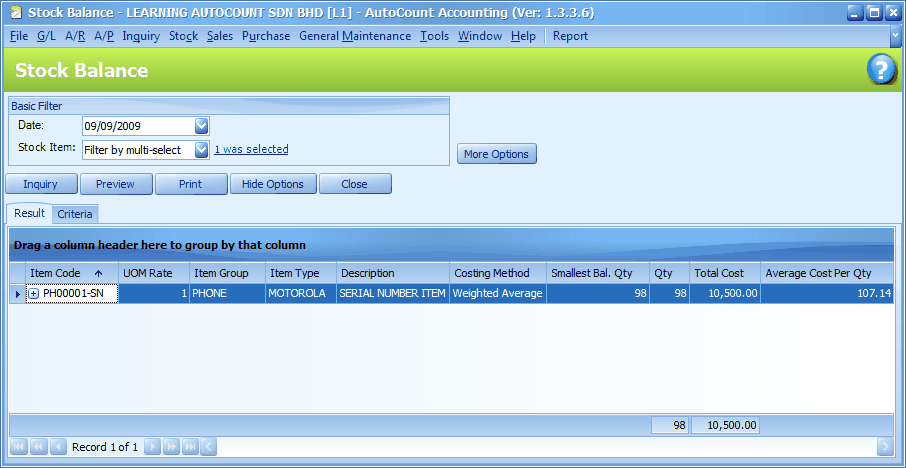

Serial Number Stock Balance Report



Go to Stock > Stock Balance Report

Define filter option, click on Inquiry.





module87r





Click on Preview





module87s

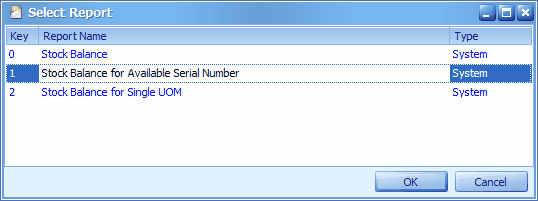

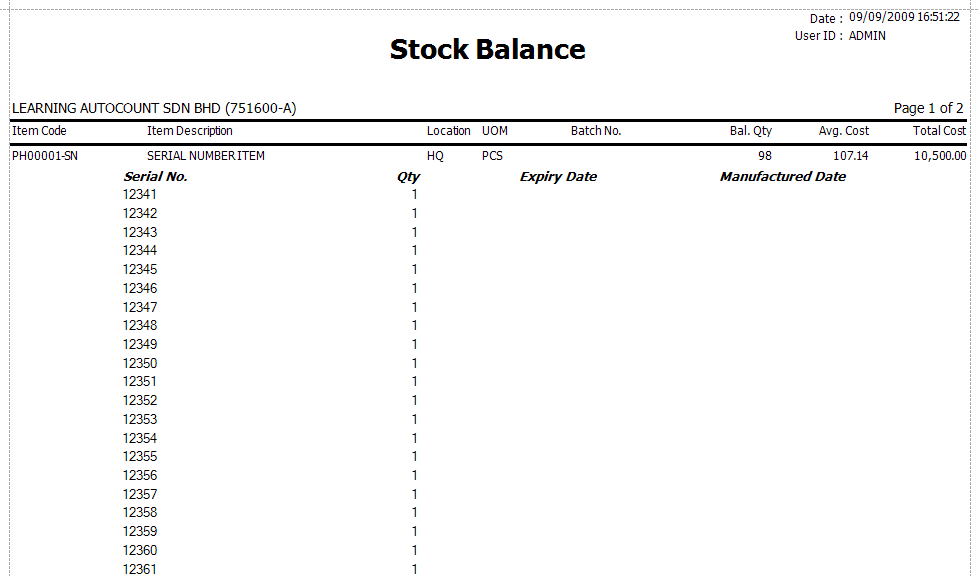

To view the listing of serial numbers, select Stock Balance for Available Serial Number





module87t













Serial Number Invoice Listing



Go to Sales > Invoice

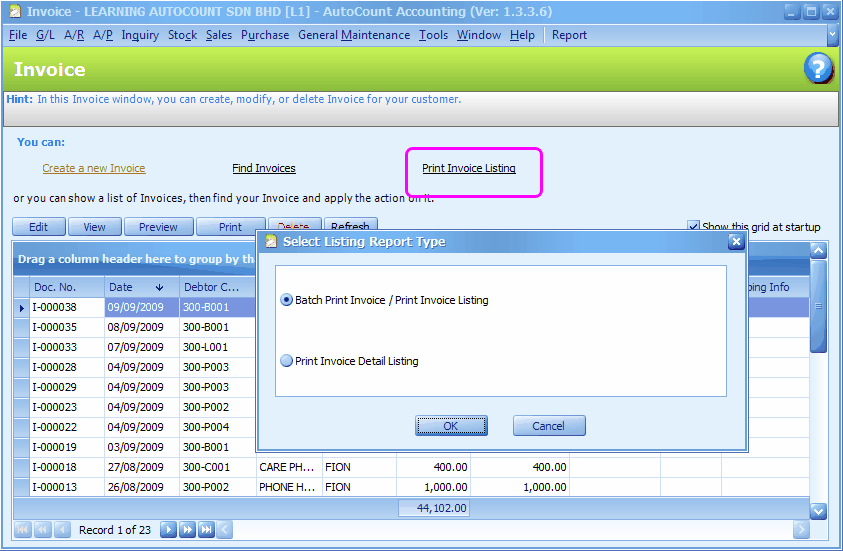

Click on Print Invoice Listing





module87u

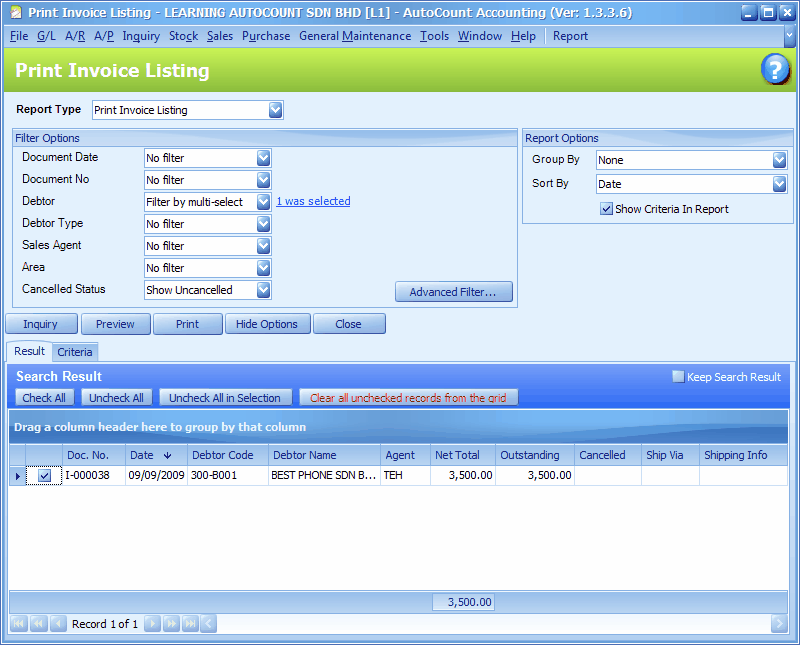

Click on OK,





module87v





Define filter options, click on Inquiry,

Check the related invoice(s)

Click on Preview,

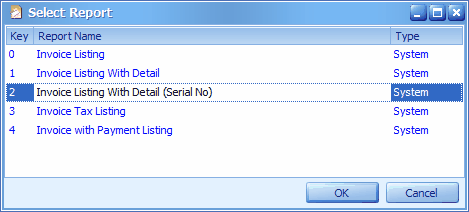

module87w

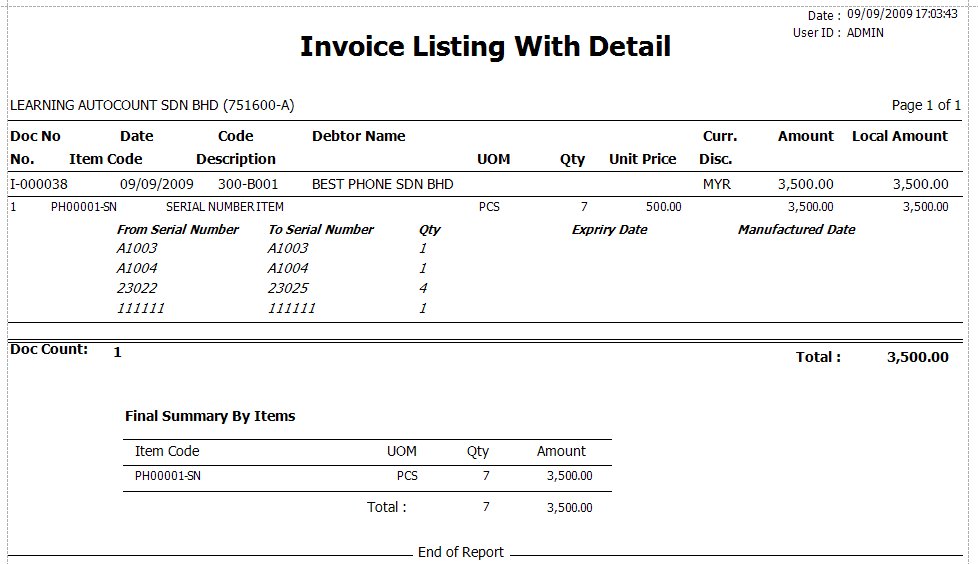

Select Invoice Listing With Detail (Serial No),

Click on OK,





module87x









Related topics: 15034 Serial Number Quantity Not Match Inquiry

15041 Negative Serial Number Quantity Inquiry
